1.High Resolution Imaging Technology

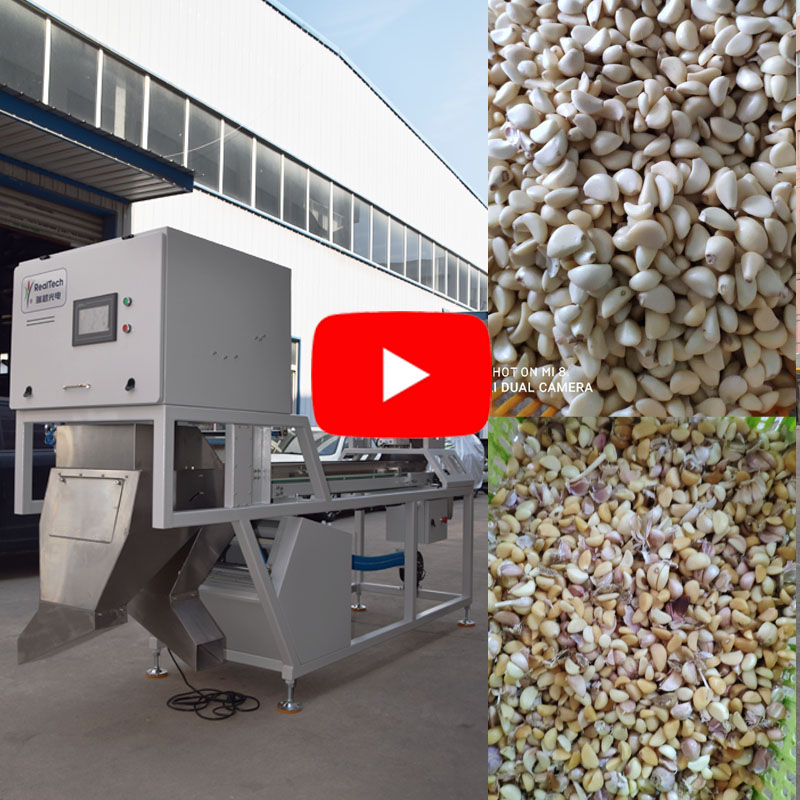

The garlic color sorter uses advanced optical imaging technology to identify color differences, surface defects and foreign materials during continuous sorting.
2.Accurate Garlic Defect Detection
Designed for peeled garlic processing, the machine can remove:
Yellow garlic cloves
Moldy garlic
Damaged garlic
Dark spots
Foreign materials
Unqualified garlic pieces
3.Stable Belt Conveyor System
The belt feeding structure provides smooth transportation, reducing collision and damage during garlic sorting.
4.Intelligent Sorting System
The intelligent algorithm supports automatic parameter adjustment and improves sorting consistency.
Model | BL-30 | BL-60 |
| Executing Unit | 64 | 128 |
| Throughout(t/h) | 1~5 | 2~8 |
| Voltage(V) | 110/220V~50/60HZ | 110/220V~50/60HZ |
| Air Pressure(MPa) | 0.6~0.8 | 0.6~0.8 |
| Power(kW) | 2.0 | 2.5 |
| Weight(kg) | 600 | 800 |
| Dimension(L*W*H/mm) | 2800*750*1807 | 2828*1070*1807 |
Note:Subject to different impurities of raw materials,parameters listed in above table will change to some extent.
